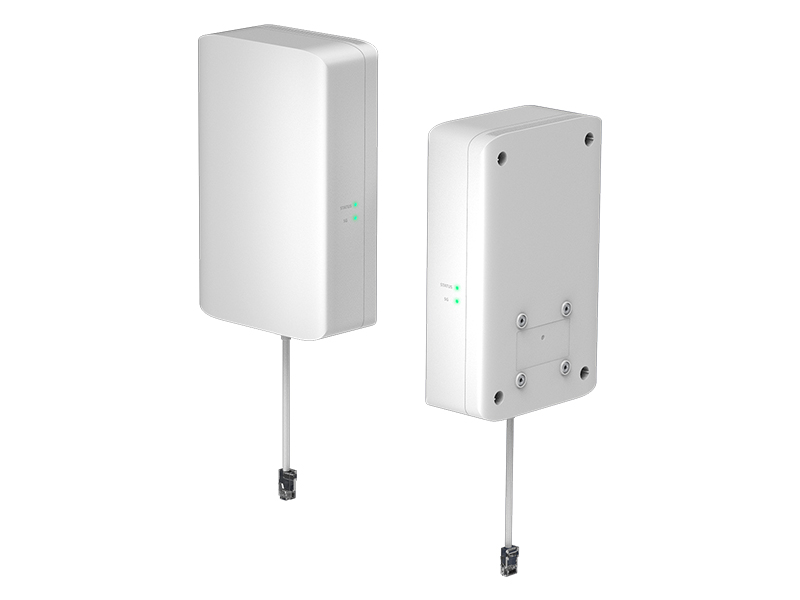

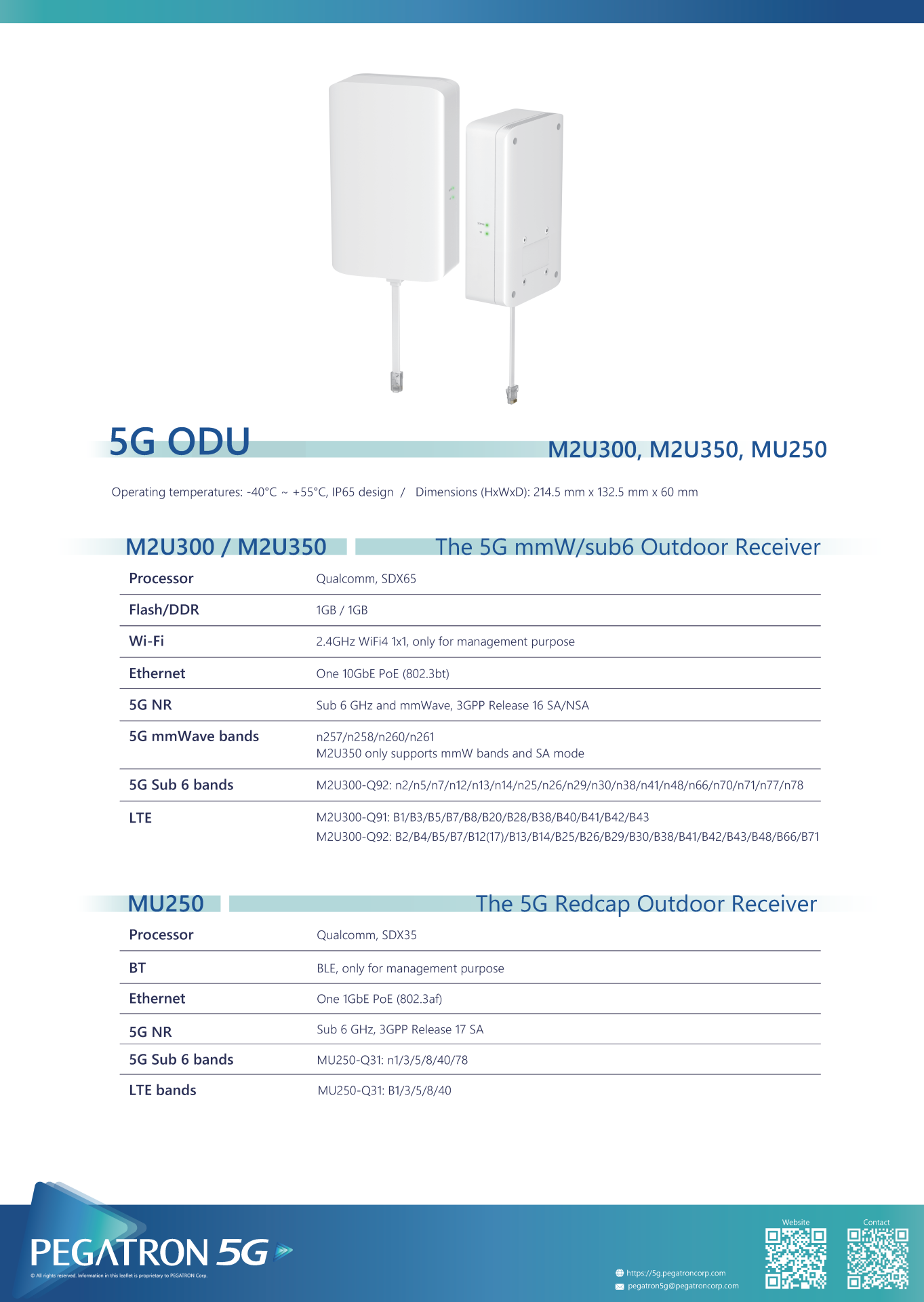

5G ODU
M2U300 / M2U350 / M2U800
| Series |
|
|---|---|
| Cellular Modem | Qualcomm, SDX65 / SDX85 |
| Flash/DDR | 1GB/1GB |
| BT | Only for management purpose |
| Ethernet | One 10GbE PoE (802.3bt) |
| 5G NR | Sub 6 GHz and mmWave, 3GPP Release 16/18, SA/NSA |
| mmWave bands | n257/n258/n260/n261 |
| 5G Sub 6 Bands | M2Uxxx-Q91: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 M2Uxxx-Q92: n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/ n41/n48/n66/n70/n71/n77/n78 |
| LTE bands | M2Uxxx-Q91: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42/B43 M2Uxxx-Q92: B2/B4/B5/B7/B12(17)/B13/B14/B25/B26/B29/B30/B38/B41/B42/B43/B48/B66/B71 |
| Operating | temperatures -40°C ~ +55°C, IP65 design |
| Dimensions | 214.5 x 132.5 x 61.5 mm |
5G Sub6 outdoor receiver for internet service
The MU310-Q611 series outdoor receiver is a customer-premises equipment (CPE) that supports 5G NR SA core networks with Sub-6GHz. It offers the flexibility of combining 5G NR broadband access to provide much higher download speeds. The MU310 series is designed for outdoor usage with an IP65/67 rating, which protects against temporary water submersion. It is powered by a PoE (802.3af) and provides a 2.5G ethernet port that can transmit multi-gigabit high-speed connections for internet access. With a mounting bracket, the MU310 series ODU can be attached to a wall or pole and function as a fixed wireless access modem with a cable connection to an in-house Wi-Fi gateway.
